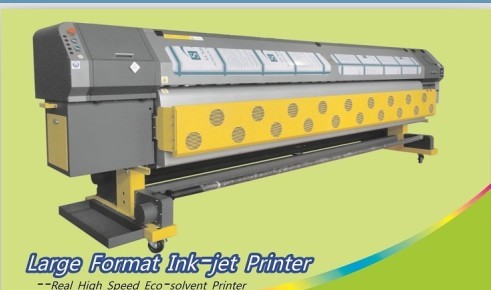

ECO solvent printer on NO print heads 3.2m print wide
Technical Parameter
Model
TR 3200
Printing Technology
Advanced MicroPiezo print head for water base or eco-solvent base
8-channel,drop-on-demand,ink jet print head
Printhead quantityNO Print heads
Ink color
4-color(K,C,M,Y)
Ink supply system
Automatic ink supply system
Printing width3200mm
Printing types
PP,Coated photo paper,light sheet,canvas and all kind of
water-based printing material/PVC
Maximum Resolution720x2880 dpi
Speed
Production Mode
Precision Mode
3 PASS
80㎡/h
72㎡/h
4 PASS
53㎡/h
49㎡/h
6 PASS
40㎡/h
36㎡/h
Print Head Cleaning systemAutomatic cleaning device
Automatic scraping ink device
Data Interface
USB2.0 high speed interface transfer system
Working EnvironmentTemperature:15℃-30℃(59℉ to 86℉)
Humidity:40-60%
Power50-60 Hz
AC220V(±10%)
Operating systemsWindows XP,Windows XP Professionalc64 Edition
Windows 7 Professional x32&x64 Edition
Printer Dimension4500mmx920mmx1420mm
